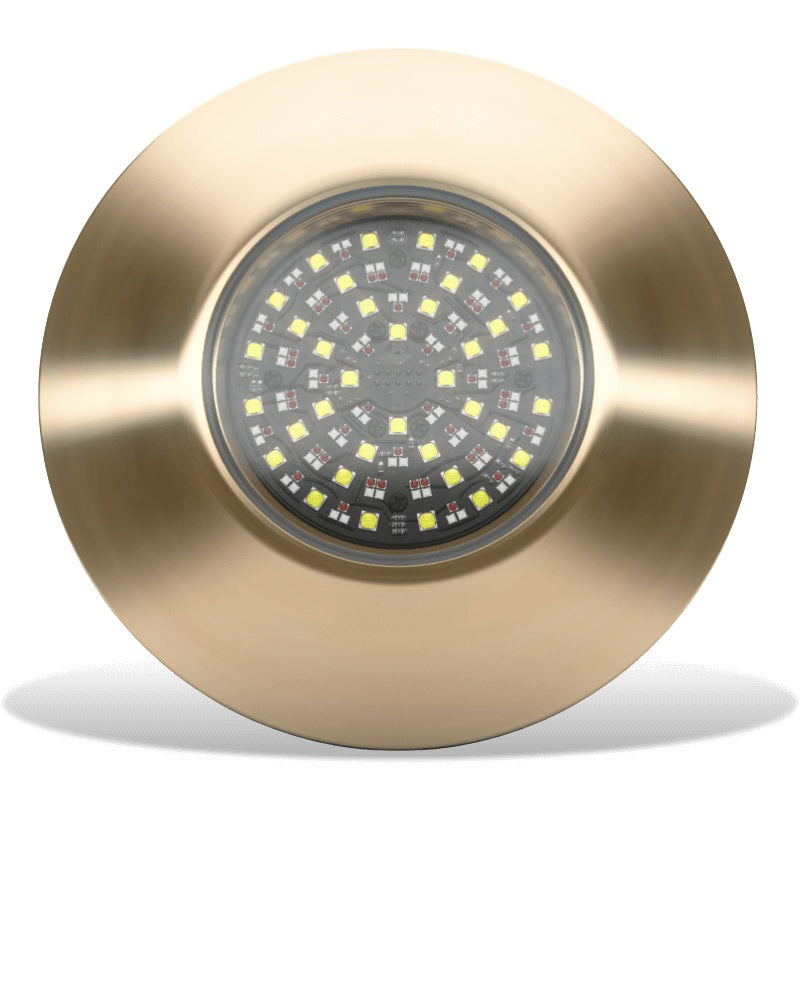

Lumishore EOS TIX1604 Interchangeable Thru-Hull Mount RGBW LED
Model: EOS TIX1604 / 010-04533-00This fully controllable color change TIX1604 underwater light delivers the greatest range of colors, 17,500 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.
Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.
Suitable for transom, side and bottom mounting.
TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.
Specifications| AVAILABLE LED COLORS | EOS FULL COLOR CHANGE (RGBW) |
| LUMENS | 39,375 |
| VERIFIED FIXTURE LUMENS (WHITE) | 17,500 |
| NUMBER AND TYPE OF LED | White - 36 x 10W, Green - 36 x 3W, Blue - 36 x 3W, Red - 48 x 3W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 110° |
| DRIVER | Multi-Channel External Driver |
| SUPPLY VOLTAGE | 24 V DC |
| MAX CURRENT DRAW | 6.5A |
| HOUSING TYPE | MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS | From your MFD and/or optional Lumishore Display |
| LIGHTS SYNCHRONIZED | YES |
| COLOR CYCLE w/SPEED ADJUST | YES |
| COLOR SWEEP w/SPEED ADJUST | YES |
| CUSTOMIZABLE FAVORITES | YES |
| FIXED & RANDOM STROBES | YES |
| PROGRAMMABLE SCENES | YES |
| WI-FI CONTROL (APP) | YES |
| SOUND-TO-LIGHT | YES |
| BRIGHTNESS ADJUST | YES |
| AUTO LIGHT DISCOVERY & SETUP | YES |
| WARRANTY | 3 YEARS |
What's in the Box:
- One (1) EOS TIX1604 Light with Built-in Driver
- Two (2) x 1M DMX cables (60-0403)
